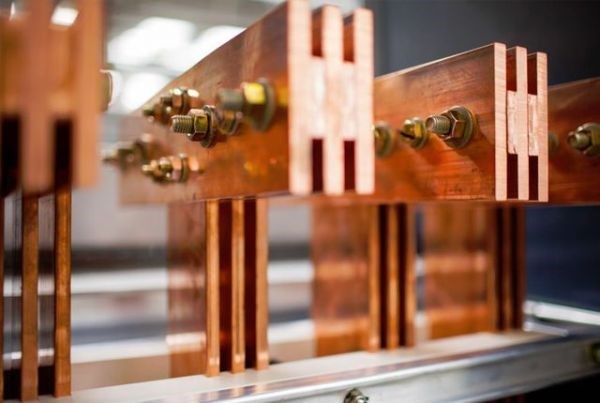

Copper Busbar
Copper Busbars are used in high current, low voltage distribution and control equipment, low and medium voltage switchgear, transformers, grounding, electrical installations, electrical panels, telephone exchanges, and commercial and industrial buildings where high voltage is used. Copper strips are manufactured in compliance with TS 435, TS EN 1652, DIN EN 13601, and DIN EN 12167 standards.
The production of rectangular copper busbars is done in three ways: • Sharp-edged • Self-radius • Full-radius
Alloy Types
E-Cu58 ETP-Cu Cu: min %99,95
Production Measurements
|
Thickness |
Width |
Hardness |
|
Min |
Max |
Min |
Max |
Value |
|
2 mm |
60 mm |
10 mm |
160 mm |
F20 (45 - 65 hv)
F25 (65 - 95 hv)
F30 (90 - 110 hv)
F37 (110 hv ve and above) |
