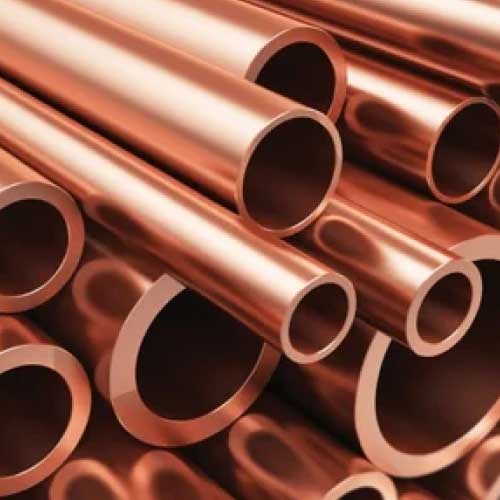

Copper Pipe
The production of copper pipes is carried out according to the standards DIN EN 1057, DIN EN 13348, DIN EN 13600, ASTM B280, ASTM B68, ASTM B75, and TS 380
Alloy Types
E-Cu58 ETP-Cu Cu: min %99,95
LWC (Level Wound Coil) Pipe Series: Annealed, bright, 120-130 kg coils.
Pancake Coil Pipe Series: Annealed, bright, 20-100 m coils.
Straight Pipe Series: Annealed, bright or hard, 2-6 meters straight.
Production Measurements
|
Wall Thickness |
Outer Diameter |
Hardness |
|
Min |
Max |
Min |
Max |
Value |
|
0,035 mm |
5 mm |
4 mm |
80 mm |
42,30 – 52,10 HV |
