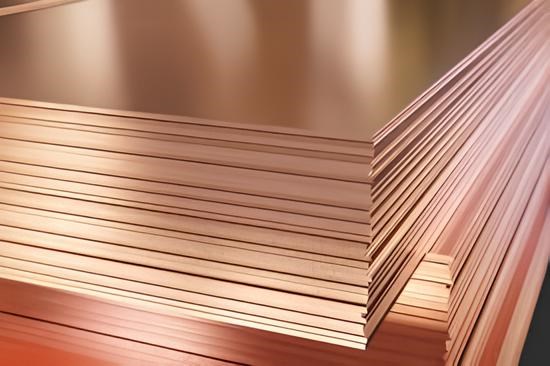

Copper Sheet
Copper sheets are available in soft, hard, and semi-hard options and are used in the electrical industry, roofing, kitchenware production, etc. They comply with TSE EN 13599, TSE EN 1652, DIN 40500, and DIN 1791 standards.
Alloy Types
Cu-ETP, Cu-HCP, Cu-PHC, Cu-DLP, Cu-DHP, Cu-SN, Cu-SN01
-
SW-Cu (DLP-Cu) P: % 0,005-0,014
-
SF-Cu (DHP-Cu) P: % 0,015-0,040
-
SE-Cu (HCP-Cu) P: % ≤ 0.004
-
E-Cu58 ETP-Cu Cu: min %99,95
Production Measurements
|
Thickness |
Width |
Hardness |
|
Min |
Max |
Min |
Max |
Value |
|
0,030 mm |
15 mm |
10 mm |
1000 mm |
F20 (45 - 65 hv)
F25 (65 - 95 hv)
F30 (90 - 110 hv)
F37 (110 hv ve and above) |
